Szymon Nowak
@szimek
Cowbell Labs
what is
WebRTC
?
peer-to-peer
peer-to-peer
audio
peer-to-peer
video
peer-to-peer
data
plugin-free video calls
"WebRTC: Ready to Get Real?"
"How Will WebRTC Affect the Business VoIP Market?"
"Will Mobile Help or Hinder WebRTC?"
"More talk about how #WebRTC can disrupt the existing #Telecom infrastructure with #OTT comms."
how I got into this
© Sony Pictures
© Sony Pictures
© Sony Pictures
© Sony Pictures
© Sony Pictures
audio / video
© Amazon
no infrastructure needed *
signaling
recording
low bandwidth
browser
to
browser
browser
to
phone

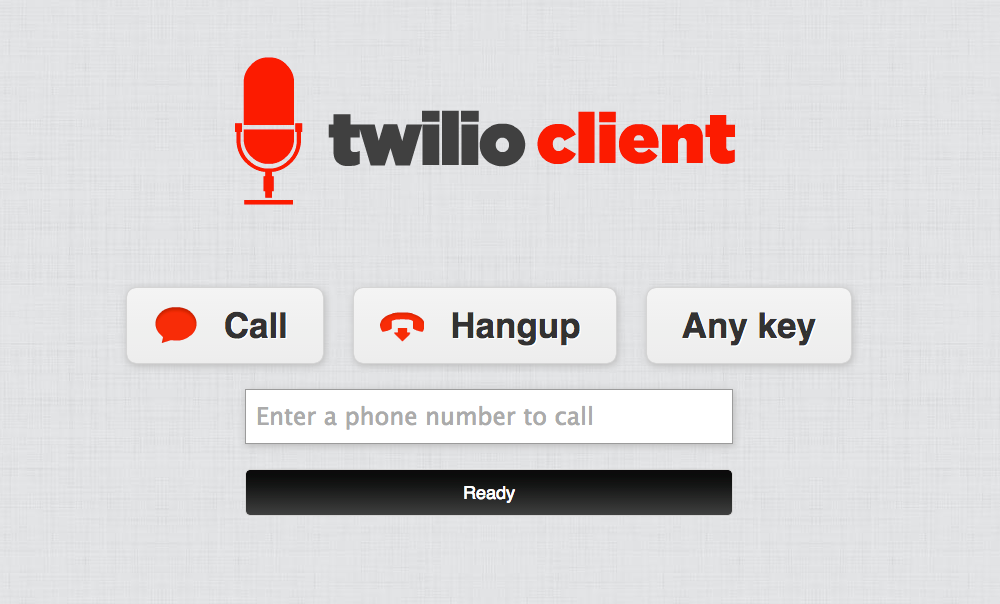

demo #1
require "sinatra"
require "twilio-ruby"
get "/" do
capability = Twilio::Util::Capability.new ENV["ACCOUNT_SID"], ENV["ACCOUNT_TOKEN"]
capability.allow_client_outgoing ENV["APP_SID"]
capability.allow_client_incoming "FEC14"
token = capability.generate
erb :index, locals: {token: token}
end
post "/voice" do
content_type "text/xml"
"<Response>
<Dial callerId=\"#{ENV['CALLER_PHONE_NUMBER']}\">
<Number>#{params[:PhoneNumber]}</Number>
</Dial>
</Response>"
end
Twilio.Device.setup("<%= token %>", {debug: true});
function call() {
var params = {"PhoneNumber": $("#number").val()};
Twilio.Device.connect(params);
}
function hangup() {
Twilio.Device.disconnectAll();
}
function anykey() {
var conn = Twilio.Device.activeConnection();
if (conn) conn.sendDigits("1");
}
browser
to
phone
phone
to
browser
demo #2

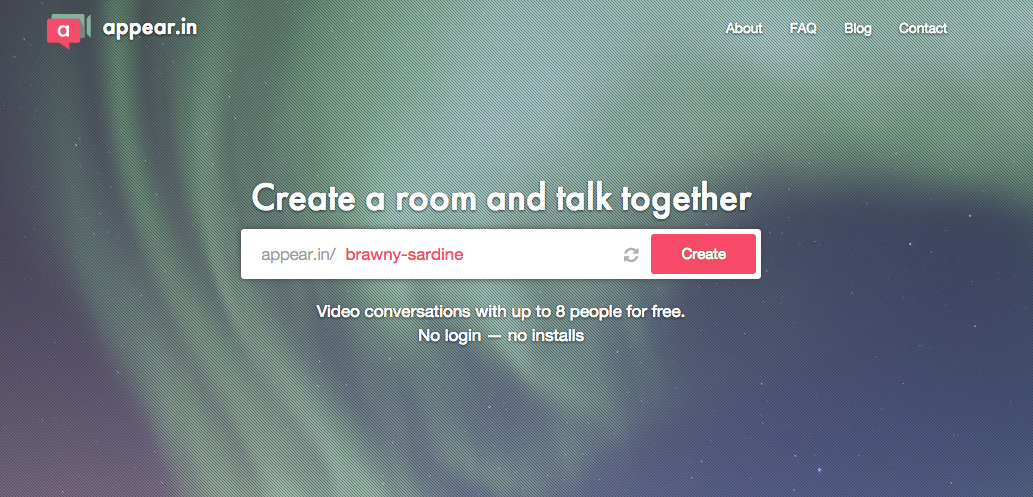

Nice! #FirefoxOS keeps improving - here testing appear.in between an #iPhone and a FirefoxOS phone :) #webRTC FTW! pic.twitter.com/ZOir8snL4y
— appear.in (@appear_in) August 19, 2014developers
no infrastructure needed *
users
no third-party app accounts

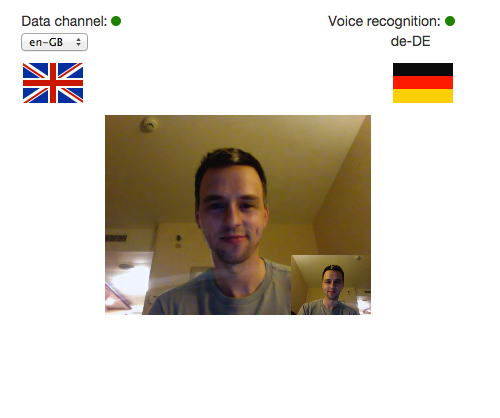

demo #3
image processing
motion detection
object tracking
face detection
augmented reality
audio processing
WebAudio API
can use and create
WebRTC media streams
measure volume
change pitch of your voice
mix and broadcast music
high
CPU / energy
usage
offload processing
to a
third-party service
Kurento
screensharing
Chrome
via per-page extension
Firefox 34+
via flag + domain whitelist
webrtc-experiment.com
live streaming

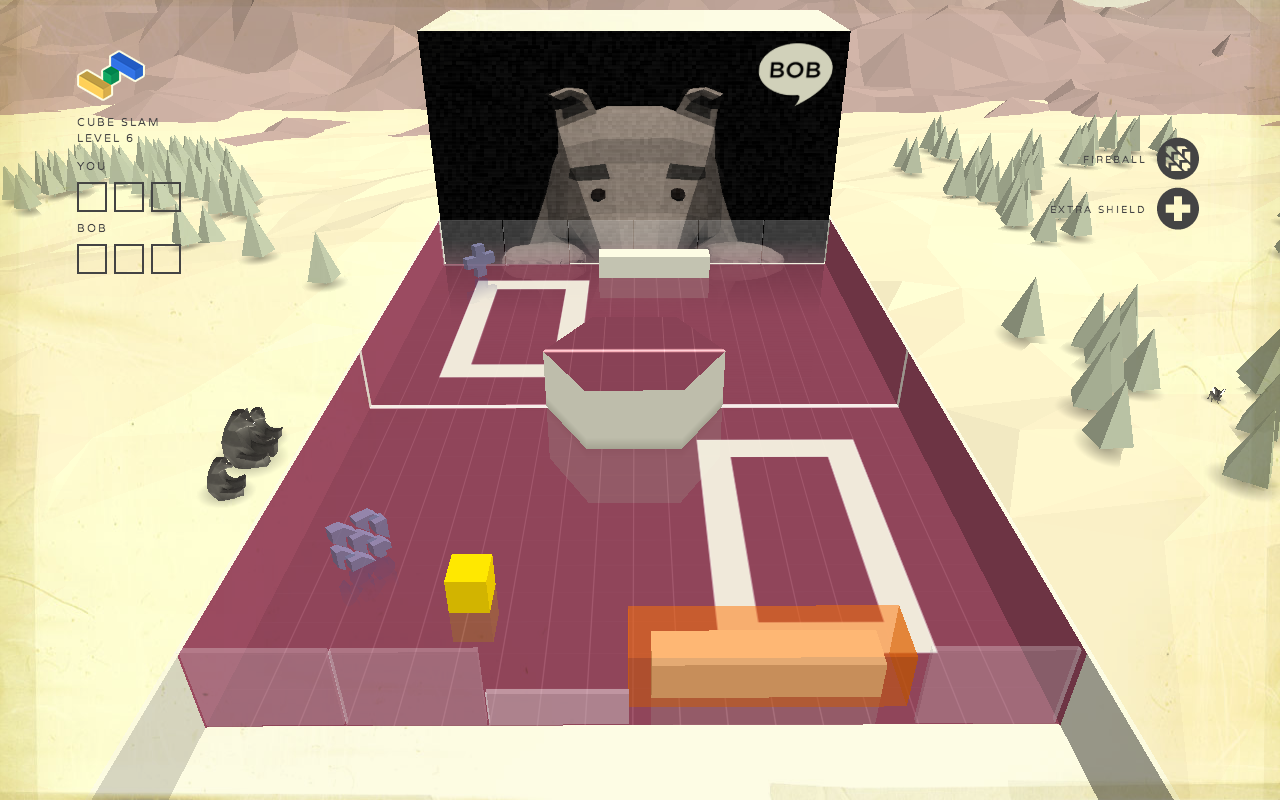

games
live streaming
presentations
WebRTC
doesn't scale*
Scaling WebRTC audio for gaming
by Ross Kukulinski from SpeakIt.io
data
low-latency networking
multiplayer games
BananaBread
Source Multiplayer Networking

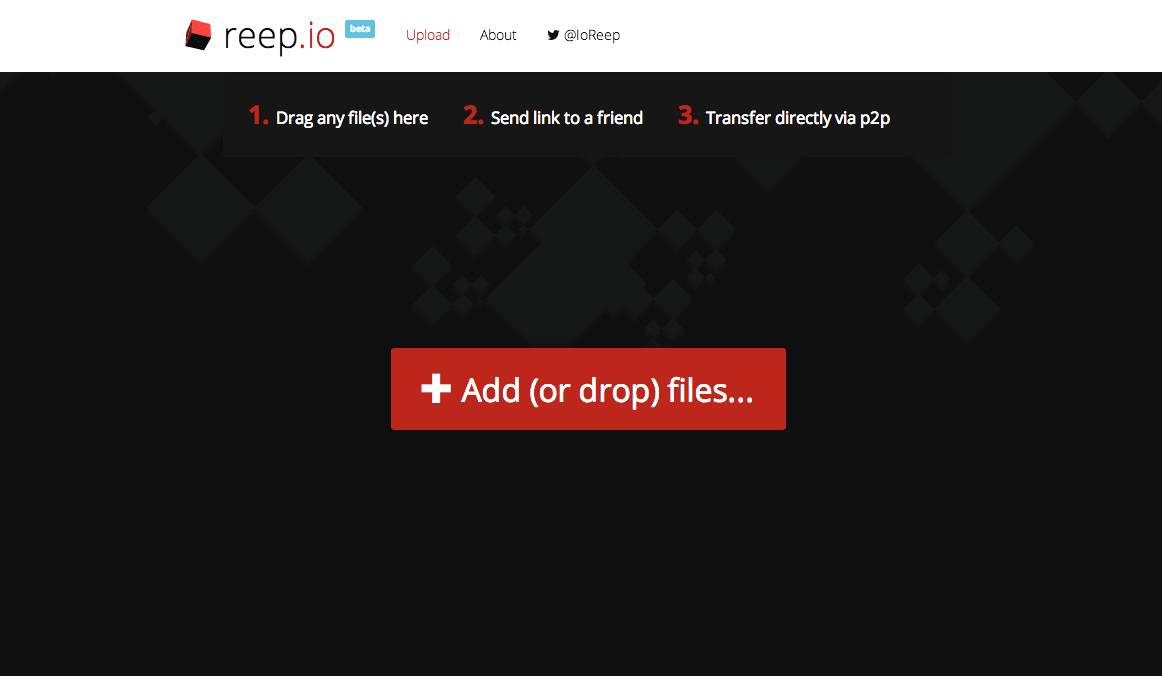

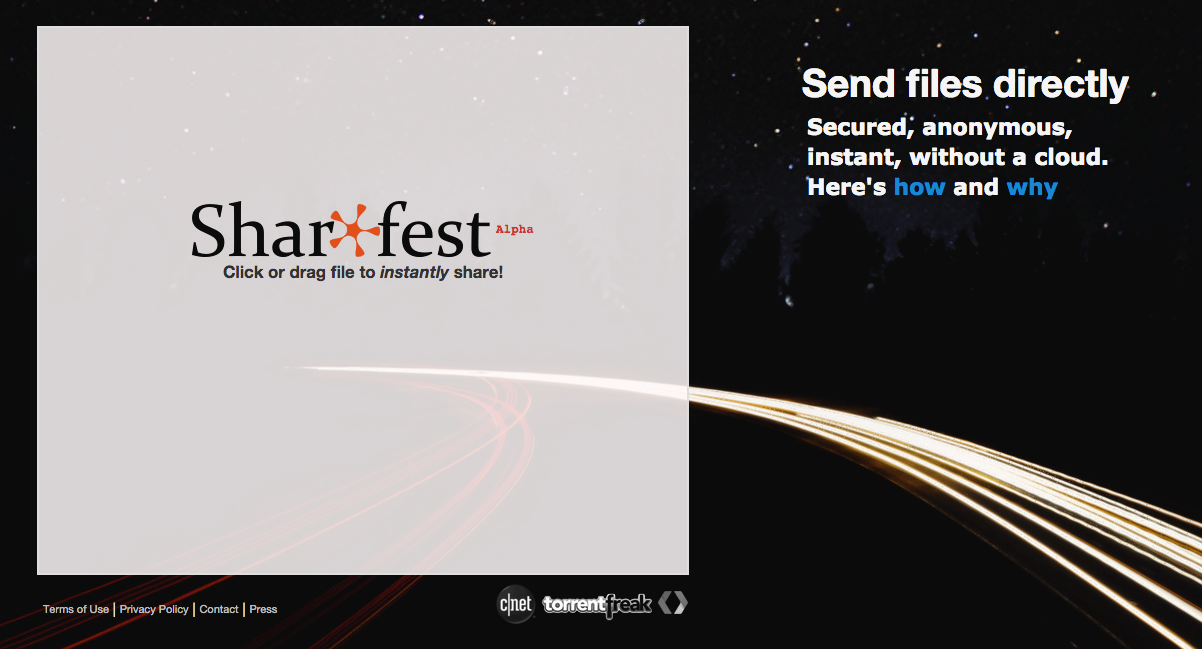

file sharing
BitTorrent
feross / webtorrent

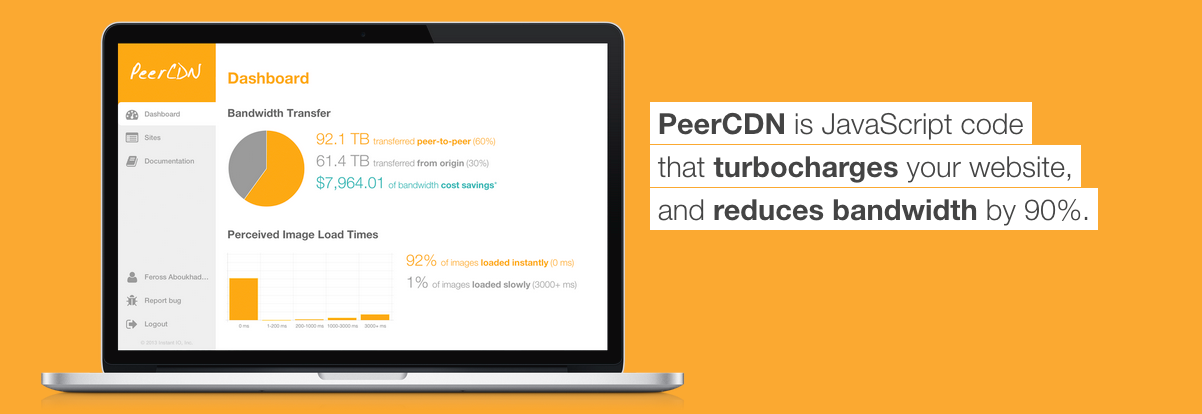

CDN augmentation
web server
PeerServer
how does
WebRTC
work?
SDP Session Description Protocol
ICE Interactive Connectivity Establishment
STUN Session Traversal Utilities for NAT
TURN Traversal Using Relay NAT
RTP Real-time Transport Protocol
SCTP Stream Control Transmission Protocol
© Sony Pictures
© Sony Pictures
// Stir in the WebRTC object
var webrtc = new SimpleWebRTC({
localVideoEl: 'localVideo',
remoteVideosEl: 'remotesVideos',
autoRequestMedia: true
});
// Join when ready
webrtc.on('readyToCall', function () {
webrtc.joinRoom('your awesome room name');
});
// Send data
webrtc.sendDirectlyToAll('data channel name', 'label', message);
// Receive data
webrtc.on('channelMessage', function (peer, channelName, data) {
// Handle message
// data.type -> label
// data.payload -> message
});
browser support
